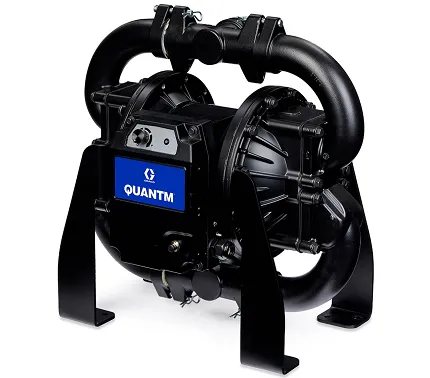

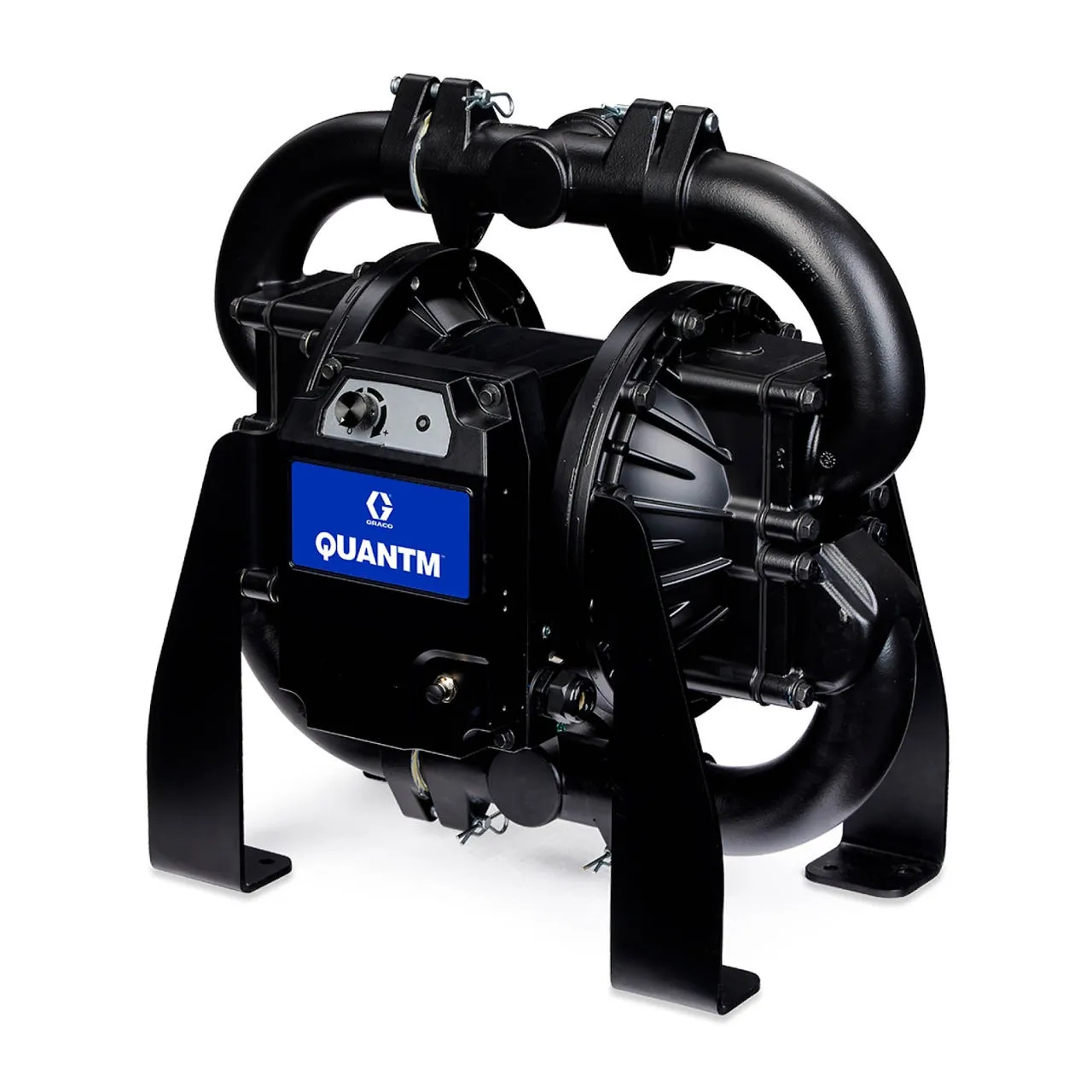

QUANTM i120LP Double Diaphragm Pumps

QUANTM i120LP Double Diaphragm Pumps

The QUANTM i120LP with 2 in. (51 mm) porting combines Graco's revolutionary new electric operated double diaphragm (EODD) pump with proven flap-valve reliability. Providing the perfect solution for customers focused on meeting sustainability goals while offering the ability to move line-sized solids. This allows customers to reduce their largest variable cost: energy consumption.

Elevate your transfer process with a reliable new QUANTM i120LP industrial flapper pump, built for waste and trash in mines, sumps and in-plant applications. Pass solids up to nearly 2-inches without clogging and achieve flow rates up to 120 gallons per minute after a fast and easy plug-and-play installation. Graco's new electric motor technology delivers up to 8x more continuous torque at low speeds than conventional motors, providing a solution that is up to 80% more efficient than pneumatic alternatives.

Features

  • Wide operating range and materials of compatibility - it handles abrasives, solids, and shear sensitive materials
  • Up to 80% more efficient than AODD pumps
  • Efficient electric drive module includes a simple one-touch knob that adjusts pump speed and pressure, LED indicator featuring system status and on-board diagnostics.
  • Similar in size to existing AODD pumps - removal of gearbox reduces footprint compared to other electric options
  • Self-priming and seal-less design minimizes maintenance and spare parts costs
  • The only electric diaphragm pump on the market that stalls under pressure; eliminates the need for pressure sensors and additional controls. Reduces downtime by preventing pump failures caused by clogged lines or closed valves.
  • Optional leak detector for ehnahced safety and improved reliability

Ordering Information

Hazardous Location Approval: Voltage (V ac): Fluid Inlet Thread Type: Diaphragm Material:
None, ATEX 240 VAC 1Φ, 240 VAC 3Φ NPT, BSPT Buna-N, Geolast
Class 1, Division 1 Polychloroprene
IECEx Santoprene
TPE (Hytrel)
