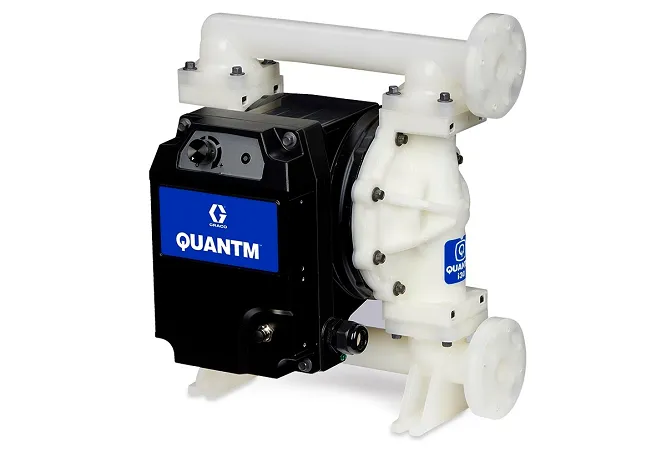

QUANTM i30 Double Diaphragm Pumps

QUANTM i30 Double Diaphragm Pumps

The QUANTM i30 with 1 IN (25.4 MM) port is Graco’s revolutionary new electric operated double diaphragm (EODD) pump that provides the ideal solution for factories or manufacturing plants focused on meeting sustainability goals by reducing their largest variable cost: energy. An i30 pump could pay for itself in 12 months or less while helping achieve compliance with increasingly tight regulations and earning significant rebates along the way.

Upgrade your existing air-operated pumps with a reliable new QUANTM i30 electric pump or spec it as part of a greenfield facility initiative. With a 1 IN (25.4 MM) port and maximum flow rate of 30 gallons per minute, and a powerful new electric motor and drive that provides up to 8x more continuous torque at low speeds than conventional motors, the i30 is capable of handling most fluid transfer jobs to be the efficient workhorse you need on your production lines. Plus, the fast and easy plug-and-play installation — you simply plug it into any 120V outlet — allows you to easily replace existing pumps without additional investment or infrastructure rework.

Features

  • Wide operating range and materials compatibility—it handles abrasives, solids, aggressive chemicals, and shear-sensitive materials
  • Up to 80% more efficient than AODD, 50% more efficient compared to competitive electric technologies—displacing fossil fuel, hydraulics and air power
  • Electric drive control module includes a simple knob that adjusts pump speed, LED indicating status and trouble codes, and software required for pump operation
  • Similar size to existing AODD, the removal of the gearbox reduces footprint compared to other electric options
  • Self-priming and seal-less design that minimizes maintenance and spare parts costs
  • The only electric diaphragm pump on the market that stalls under pressure, eliminating the need for pressure sensors and additional controllers and reducing downtime by preventing pump failures caused by clogged lines or closed valves
  • Leak Sensor (optional)

Ordering Information

Hazardous Location Approval: Fluid Section: Diaphragm Material: Ball Material:
ATEX Aluminum, End Port, NPT Buna-N, FKM (Viton) PTFE
Class 1, Division 1 Stainless Steel, End Port, NPT Geolast 316 Stainless Steel
None, IECEx Stainless Steel, Horizontal Center Flange Polychloroprene Overmold Acetal, Buna-N
Polypropylene, End Flange PTFE Overmold FKM (Viton), Geolast
Polypropylene, Center Flange PTFE/Santoprene 2-Piece Polychloroprene
PVDF (Kynar), End Flange Santoprene Santoprene
PVDF (Kynar), Center Flange TPE (Hytrel) TPE (Hytrel)
